U-Upload Cart Documentation
1 Overview
1.1 Introduction
1.2 Features
1.3 Version History
1.4 Known Issues
2 Installation
2.1 Deploying to a web server
2.2 Minimum configuration
3 Using U-Upload Cart
3.1 Minimum System Requirements
3.2 User Interface
3.3 Running U-Upload
3.4 Directory browsing
3.5 Selecting files and directories
3.6 Uploading files
4 Configuring U-Upload Cart
4.1 Connection parameters
4.2 Proxy parameters
4.3 Functionality related parameters
4.4 Color and Interface settings
4.5 Error Page URL parameters
4.6 Language settings and
internationalization
5 Advanced Features
5.1 Advanced file selection
5.2 Loading U-Upload
dynamically
5.3
Integrating U-Upload with your web
application
6 Support
6.1 Frequently Asked Questions and
Troubleshooting
6.2 Support forums
6.3 Phone,
Email, and chat support
1 Overview
1.1 Introduction
U-Upload Cart is an FTP file upload applet with over
50 customizable parameters and an advanced file selection interface.
Using U-Upload Cart's parameters, you can create fully customized,
simple to use, file/image upload site for your users. To customize U-Upload
Cart, you must edit "uuploadcart.js" file with an HTML/text editor. You
can
then use the following tables as a guide to customizing each of
U-Upload Cart's parameters.
Then add the following line to your HTML file:
<script language="javascript" src=" uuploadcart.js"></script>
You must also make sure that you either put
uuploadcart.js in the same directory as your page, or the src parameter
reflects the location of the script file.
If you require further assistance with setup, or are
interested in related products and customization services, please visit
our website.
Please also review the Readme and License
files.
1.2 Features
The following is a list of the main
features of U-Upload Cart.
- Tailored for Print/Image Upload.
- Image file preview.
- Advanced file selection interface.
- Maintain all resource forks on Mac using Mac Binary encoding on Mac Classic, and DMG format on OS X
1.3 Version History
New features and bugs fixed in version 1.3.1
- Added "checksize" parameter. This will verify file size after a transfer
- Redirect URLs can now call "javascript:" urls.
New features and bugs fixed in version 1.3.0
- Added auto DMG feature for OS X 10.1+. This will maintain all resource forks, and upload one DMG image file
- Added ability to show thumbnails while browsing
- Added ability to specify whether to re-zip selected zip files
- Added abililty to HTTP POST either the name of generated archives (Zip, DMG) , or the contents of the archives.
- Added "servletUploadMultiplier" parameter to improve upload performance through UnlimitedFTP Servlet
- Added "addAllFileAndDirectories" parameter to control function of "Add All" button
New features and bugs fixed in version 1.2.2
- Added removeSpaces, removeAccentsAndQuotes, and removePathsFromPostData parameters
- Fix bug with file browsing on Unix/Linux clients
- Added more language support
- Various other minor bug fixes
New features and bugs fixed in version 1.2.1
- Added autoZip, zipFilename, and zipPathinfo parameters
- Fix bug with sendLogsToURL being left blank
- Completed language entries
- Various other minor bug fixes
New features and bugs fixed in version 1.2
- Fixed bug with network interruptions for Mac Classic (Mac OS 9.1 and Mac OS 10.1.5).
- Fixed bug with transfer time for large file size in Mac OS 10.1.5.
- Fixed bug with multiple directory uploads.
- Fixed bug with large number of files and callurlaftertransfer parameter in uploadcart.js file.
- Added new GUI interface with new button.
- New delimiter parameter introduced in uploadcart.js file.
- New sendLogsToURL parameter introduced in order to send FTP session logs to a url.
- New postURL parameter introduced in order to send file list to a url via HTTP Post.
- New uploadButtonLocation parameter introduced for placement of Upload button on the U-Upload Cart applet.
New features and bugs fixed in version 1.0.1
- Fixed bug with selecting multiple files from
different directories, remote path was mangled
- Fixed bug with redirect URL not appending file
list, and totalSize was always = 0
- Fixed bug when deselecting files that have been
selected while holding CTRL
- Fixed bug with Cancel/Resume on Mac OS 9
1.4 Known Issues in version
1.3
-
Parameter "mode" in
uuploadcart.js file.
The "mode" parameter in
uuploadcart.js file, when set to "macbin" for Mac, will not function
for Mac OS 10.2 or higher. Setting mode parameter to
"macbin" will transfer any Windows or Mac file in data mode. See Section 4.3 As of v1.3, Mac OS X can now maintian resource forks using the "autoDmg" parameter.
-
Opera browser on Mac
(all versions) behaves erratically, and is not supported.
- Firefox on Mac OS X is not yet supported. Until the Java Embedding Plugin v1.0 is released this will continue to be the case.
- Network
interruptions for
Mac Classic (Mac OS 9.1 and Mac OS 10.1.5)
With the network cable unplugged, Mac Classic will
auto resume upload of the same file irrespective of any waitRetry or waitRetries
parameter set
in uuploadcart.js file.See Section 4.1
2 Installation
2.1 Deploying to a web server
- Extract the contents of uuploadcart.zip to your local
hard disk using a zip utility.
- Create a directory on your web server. For example
/uuploadcart.
- Upload all files extracted in Step 1. to the
directory you created on the web server in Step 2. Important:
When uploading files make sure that you upload files in binary mode.
- Go to test page located at the URL
http://yourserver.com/uuploadcart/index.html, where yourserver.com is
replaced by your domain name. Example:
http://www.utechsoft.com/uuploadcart/index.html
- U-Upload Cart has a minimum configuration
requirement, which is described in Section 2.2
- To customize the Functionality of U-Upload Cart, edit
the file uuploadcart.js with a text editor such as notepad. Each of the
customizable parameters is defined below in Section 4
- Upload the new uuploadcart.js to your web server.
2.2 Minimum configuration
U-Upload Cart requires a minimum configuration
in order to function. You must setup the "server", "user" and "pass"
parameters so U-Upload Cart can connect to your FTP server and upload
files. To do this you must edit file uuploadcart.js with a text editor,
and set the values to reflect your FTP server. For example:
// Connection related values
var server = "ftp.yourserver.com";
var port = "";
var user = "username";
var pass = "password";
Additional configuration parameters are described in Section 4
3 Using U-Upload Cart
3.1 Minimum System Requirements
The minimum system requirements for using U-Upload
Cart are as follows:
Operating Systems: Windows 98/2000/XP/ME or Mac OS
8.x, 9.x, 10.x , Linux, Soalris
Browser: Internet Explorer, Netscape Navigator, Opera. Mozilla, Safari, Firefox
Browser Java VM: Java 1.1 or above enabled
FTP server (must be accessible from your machine)
3.2 User Interface
Below is a screen shot of the U-Upload Cart user
interface. Depending on your Operating System and browser, as well as
the parameters you have configured, your display may differ slightly.

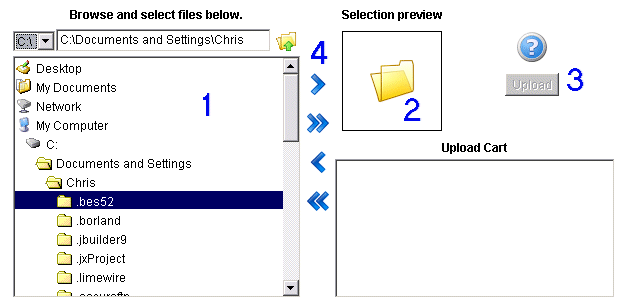

Fig. 3.1 The U-Upload Cart
interface
-
Directory Listing - Displays the files /
directories within a directory on local machine.
-
Selection Preview Box -This box will let you
preview a image file before uploading onto the ftp server.
-
Upload button - This button will upload files
in Upload Cart to the ftp server.
- Add, Add All, Remove, Remove All buttons.
|
This button will let you add all the files from a folder as selected on browse dialog onto Upload Cart. |
|
This button will let you add a single file from a browse dialog onto Upload Cart. If a
folder is selected on browse dialog, this button will also add the entire folder onto Upload Cart. |
|
This button will let you remove a single file from Upload Cart. This button will also
remove an entire folder from Upload Cart. |
|
This button will let you remove more all the files or folders from Upload Cart. |
|
This button will display the U-Upload Cart usage instructions. |
3.3 Running U-Upload Cart
To load U-Upload Cart, use your web browser to open the test page you uploaded during installation. See Deploying
to a web server. Upon loading U-Upload Cart a dialog will be
presented
similar to the one shown below asking you to confirm that you trust the
certificate used to sign the applet. The dialog may vary depending on
the browser you use. You must accept this dialog for the applet to
continue loading. To avoid this dialog from being displayed each time
you connect click on the "Always trust content from Unlimi-Tech
Software Inc." checkbox in IE, or on the "Always" button if you use
Sun's Java Plugin. This dialog ensures that U-Upload Cart is a trusted
application, and you wish to allow it to run with full permissions.
WINDOWS 2000
|

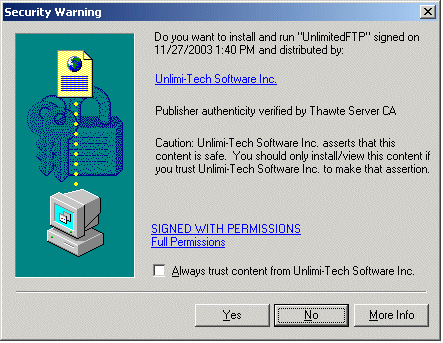

Fig. 3.2.1 Internet Explorer with
Microsoft VM security warning
|
|

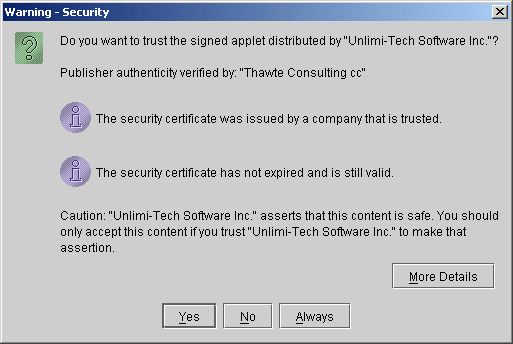

Fig 3.2.2 Sun Java Plugin security
warning
|
WINDOWS XP
|
|

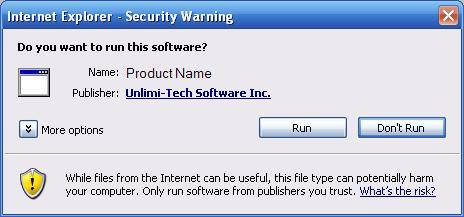

Fig. 3.2.3 Internet Explorer with
security warning
|
|

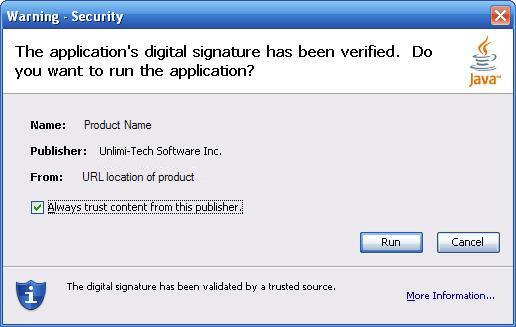

Fig 3.2.4 Sun Java Plugin security
warning
|
|

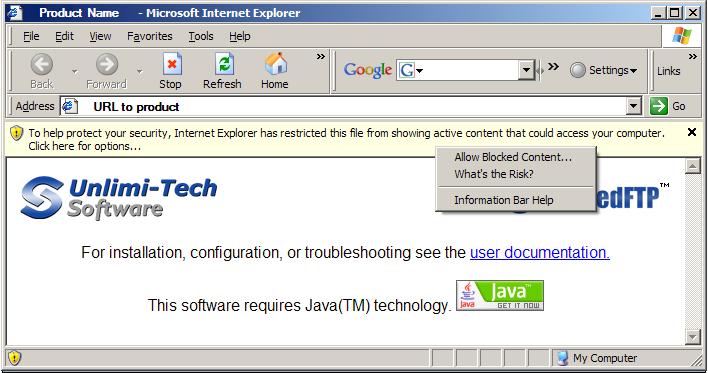

Fig 3.2.5 Microsoft Java Plugin security
warning
|
MAC OS X
|
|
Fig. 3.3 Safari Browser with
security warning
|
Once you have accepted the certificate dialog,
U-Upload Cart will continue loading.
3.4 Directory browsing
When U-Upload Cart is loaded, U-Upload Cart will
display a list box similar to the one displayed in Figure 3.4 below.
Folders are identified by the folder icon
and files are identified by the file icon .
To see the contents of a sub folder, double click on its icon. You may
return to a parent folder by clicking on the parent folder icon .
Directory browsing may also be done using the keyboard
using the up/down arrows and the Enter key. You may quickly move the
list to a file beginning with a certain letter by pressing the first
letter of that file on your keyboard. Pressing Enter on a folder will
automatically enter that folder for browsing.
Fig. 3.4 U-Upload Cart browse list box
3.5 Selecting files and directories
To select a file or folder, click on the item in the
directory listing using your mouse. You may select a multiple of files
by holding down the SHIFT key and selecting the first and last file in
the desired range. Alternatively you may select multiple items by
holding the CTRL key and selecting each item using your mouse. When you
have selected the files you wish to upload, click on the Add button.
Mac OS 9.x users may use the left and right arrow buttons to select
multiple files. Alternatively, you can
select the
files by using drag and drop feature of U-Upload Cart. Simply drag the desired files into the Upload Cart.
3.6 Uploading files
To upload the files you have selected, simply click on
the "Upload" button and the file upload should be initiated. Depending
on your configuration, you will see a progress status dialog similar
to the
one in Figure 3.5 below. Once the upload is complete, depending on the
configuration, U-Upload Cart may redirect to another web page.
Fig. 3.5 Progress status
4 Configuring U-Upload Cart
These settings can be configured in
uuploadcart.js. Note that every time you change these settings, you
will need to upload the modified uuploadcart.js file.
4.1 Connection parameters
These parameters control how U-Upload Cart will
establish
the connection to the FTP server.
Connection related settings |
server |
The host name or IP address of
the FTP server.
Default value: ""
Valid values: "<valid hostname or IP address>"
|
port |
The port number of the FTP
server. Usually the default FTP port is 21.
Default value: "21"
Valid values: "<valid port number>"
|
pass |
The password for the FTP server
account.
Default value: ""
|
user |
The username for the FTP server
account.
Default value: ""
|
passive |
If set to "true", all data
connections will be outgoing. U-Upload Cart works through firewalls
when
this value is set to "true". If you are using an FTP proxy, set this
value to "false".
Default value: "true"
Valid values: "true", "false"
|
encrypt |
If set to "true" you must pass
encrypted user/pass/server parameters to U-Upload Cart, which will
decrypt
them and perform the login. The encryption is based on a key value that
is specified by the "ek" parameter below. To encrypt parameters you can
use encrypt.html that was downloaded with U-Upload Cart. This provides
at
least some measure of protection from prying eyes, and people who love
to snoop through your HTML.
Although this seems very
un-secure to include the encryption algorithm along with the applet,
keep in mind this is only a way to hide login credentials from users
who try to view the HTML source of your page. Determined hackers will
easily be able to sniff the network to retrieve user and password info
regardless of the encryption done in the HTML.
Default value: "false"
Valid values: "true", "false"
|
ek |
This parameter works in
conjunction with the "encrypt" parameter. This is the key that is used
to encode/decode the string value you pass to the user, pass, and
server parameters. Here is an example configuration. In this example,
the server/user/pass strings are
192.168.1.100/anonymous/uftp@unlimitedftp.com respectively. This
illustrates how the parameters will look to anyone who inspects the
connection values in your HTML:
var server = "8I7BLHN;8I8@5";
var port = "21";
var pass = "|vy&[)&yp*p&jx#((;j,t";
var user = "h~t$6!=$z";
var autoconnect = "true";
var autoreconnect = "true";
var passive = "true";
var encrypt = "true";
var ek = "encryptkey";
Default value: ""
Valid values: "<string value>"
|
connecttimeout |
This value (in milliseconds)
specifies how long U-Upload Cart will try to connect to an FTP server
before
giving up and timing out.
Default value: "20000"
Valid values: "<integer value>"
|
sotimeout |
This value (in milliseconds)
specifies how long a data connection will wait to read data before
giving up and timing out.
Default value: "-1" means no
timeout
Valid values: "<integer value>"
|
waitRetry |
This value (in milliseconds)
specifies
how long U-Upload Cart will wait, if a transfer
error
occurs, before it tries to reconnect and resume the transfer.
Default value: "3000" (3 seconds)
Valid values: "<integer value>"
|
maxRetries |
This value specifies how many
times U-Upload Cart will try, if a transfer
error
occurs, to reconnect and resume the transfer.
Default value: "1"
Valid values: "<integer value>"
|
useSerfo |
If set to true, U-Upload Cart
will
attempt to open an FTP connection through the Service Forwarding Agent
at the URL specified by the "SerfoLocation" parameter below.
If set to auto, U-Upload Cart
will
first attempt to open a regular FTP connection, and if it fails, it
will retry through the Service Forwarding Agent at the URL specified by
the "SerfoLocation" parameter below.
Default value: "false"
Valid values: "true", "false", "auto"
|
serfoLocation |
The location of the Service
Forwarding Agent servlet. Please visit http://www.utechsoft.com/uftps
for more information.
Default value: ""
Valid values: "<valid URL>"
|
|
4.2 Proxy settings
These parameters allow you to configure U-Upload Cart
to
connect through a SOCKS4 or FTP proxy server. Please contact your
network administrator or ISP to determine if you use a proxy server for
FTP.
Proxy server related settings. (Internet Explorer
Only) |
autodetectproxy |
If this value is set to "true",
U-Upload Cart will automatically attempt to detect Internet Explorer's
Proxy
setup and use it when connecting to FTP servers. This will detect both
SOCKS 4 proxy settings, and FTP proxy settings.
Default value: "false"
Valid values: "true", "false"
|
socksproxy |
If this value is set to "true",
U-Upload Cart will use the SOCKS proxy server and port specified by the
"socksProxyHost" and "socksProxyPort" parameters.
Default value: "false"
Valid values: "true", "false"
|
socksProxyHost |
SOCKS proxy server location.
Default value: ""
Valid values: "<valid hostname or IP address>"
|
socksProxyPort |
SOCKS proxy server port.
Default value: ""
Valid values: "<valid port number>"
|
ftpproxy |
If this value is set to "true"
and socksproxy is set to "false", U-Upload Cart will use the FTP proxy
server and port specified by the "ftpProxyHost" and "ftpProxyPort"
parameters.
Default value: "false"
Valid values: "true", "false"
|
ftpProxyHost |
FTP proxy server location.
Default value: ""
Valid values: "<valid hostname or IP address>"
|
ftpProxyPort |
FTP proxy server port.
Default value: ""
Valid values: "<valid port number>"
|
|
4.3 Functionality related settings
These parameters determine how U-Upload Cart
will behave
under certain circumstances after a connection is established. Please
read the descriptions carefully before attempting to use these settings.
Functionality
related settings
|
mode |
Transfer method, can be set to
either "data" or "macbin", the default is data. This parameter only
works on the Mac OS platform. When the method is set to "macbin"
U-Upload Cart will automatically encode each file into a Mac Binary
format on MAC. MacBinary format is Internet friendly and allows all Mac
files to be transferred to other platforms without any
problems. IMPORTANT:Setting macbin will still transfer
windows files in
data mode.
NOTE: Macbinary will not function
in OS X 10.2 or higher.
Default value: "data" (MacOS only)
Valid values: "data" or "macbin"
|
localdir |
U-Upload Cart will
automatically
browse this local directory when U-Upload Cart is first loaded onto the
browser. Example would be "c:\\windows" on a Windows machine or "/etc" on Mac or Unix.
Default value: ""
Valid values: "<valid local directory>"
|
remotedir |
U-Upload Cart will automatically
switch to this directory on the FTP server after a successful login.
Example would be "/initialdir". Note that this directory must already
exist, or must be specified to be created with the
"createdirectoryonstartup" parameter.
Default value: ""
Valid values: "<valid remote directory>"
|
autozip |
If this parameter is set to "true", all selected files will be compressed using ZIP compression.
Default value: "false"
Valid values: "true", "false" |
zipfilename |
Used in conjunction with the "autozip" parameter, this parameter specifies the filename for the compressed archive.
Default value: "files.zip"
Valid values: <valid filename> |
rezip |
If set to "true", U-Upload will re-zip files that are already in Zip format.
Default value: "false"
Valid values: "true", "false" |
zippathinfo |
If this parameter is set to "true", all path info is maintained in the zip archive. Otherwise the path info is not included.
Default value: "false"
Valid values: "true", "false" |
createdirectoryonstartup |
This parameter specifies a remote
directory that should be created when an FTP connection is established.
Default value: ""
Valid values: "<valid remote directory>"
|
confirmoverwrite |
If this value is set to "true",
U-Upload Cart will prompt you if the file(s) already exist on the FTP
server. You will have the choice to overwrite if you want to. If it is
set to false, U-Upload Cart will always overwrite.
Default value: "false"
Valid values: "true", "false"
|
callurlaftertransfer |
U-Upload Cart will redirect to
this URL when the transfer is complete and was successful. The url will
be appended with a common base folder of all the files uploaded and
total size of all uploaded files.
NOTE:
if you are simply testing with a URL like http://www.utechsoft.com you
should append a / on the end to avoid 404 errors.
Default value: ""
Valid values: "<valid URL>"
|
callurlaftertransfertarget |
Used in conjunction with
callurlaftertransfer, this parameter specifies the target for the
redirection.
Default value: "_self"
Valid values: "_top", "_blank", "_self", etc...
|
transfererrorurl |
U-Upload Cart will redirect to
this URL if an error occurred during the file transfer, or the network
connection is terminated. This URL is also called if U-Upload Cart has
attempted to restart the transfer more than the number of tries
specified by the "maxRetries" parameter.
Default value: ""
Valid values: "<valid URL>"
|
transfererrorurltarget |
Used in conjunction with
transfererrorurl, this parameter specifies the target for the
redirection.
Default value: "_self"
Valid values: "_top", "_blank", "_self", etc...
|
transfercancelurl |
U-Upload Cart will redirect to
this URL if the transfer is canceled.
Default value: ""
Valid values: "<valid URL>"
|
transfercancelurltarget |
Used in conjunction with
transfercancelurl, this parameter specifies the target for the
redirection.
Default value: "_self"
Valid values: "_top", "_blank", "_self", etc...
|
othererrorurl |
U-Upload Cart will redirect to
this URL if any other errors occur. This may include login or
connection errors.
Default value: ""
Valid values: "<valid URL>"
|
othererrorurltarget |
Used in conjunction with
othererrorurl, this parameter specifies the target for the redirection.
Default value: "_self"
Valid values: "_top", "_blank", "_self", etc...
|
site |
This is an FTP Site command that
will be executed immediately before the upload is initiated. This is
useful for connecting to FTP server that require a specific file format
to be specified before transferring. Setting this to a value of "help"
would result in "SITE help" being sent to the FTP server.
Default value: ""
Valid values: "<valid FTP SITE command>"
|
maxfiles |
This
parameter specifies the maximum number of files that can be uploaded
onto the ftp server.
Default value: "1000"
Valid values: "<valid number>"
|
maxsize
|
This
parameter specifies the limit on the size of a file which can be
uploaded onto the ftp server.
Default value: "104857600" (in bytes)
Valid values:"<value number>"
|
extensions
|
This
parameter specifies the file filter for U-Upload Cart directory list
box. Only those files of extension type as specified are listed on the
directory list box. If more than one type of extension is specified,
they have to be delimited by a comma (,).
Note: In order for this parameter to function properly wild card
asterisk (*) and dot (.) must not be preceded with the extension.
For example: Valid values: "<jpg,bmp,txt>" // legal
Invalid values: "<*.jpg,*.bmp,*.txt>" // illegal
Default value: ""
Valid values:"<extension 1,extension 2,....,extension n>"
|
sitecommandstor |
Setting this parameter allows you
to execute a custom SITE command after each file is uploaded. This
parameter also accepts wildcards which are automatically replaced by
the full path of the file that was just uploaded. Example:
var siteCommandStor = "processfile *";
This would result in U-Upload
sending the following command to your FTP server after each file is
uploaded:
SITE processfile
/pathtofile/filename.txt
Default value: ""
Valid values: "<valid FTP SITE command>"
|
delimiter |
Used in
conjunction with postURL parameter, this parameter specifies the
delimiter in between the list of files to the url as set for postURL
parameter.
Default value: "#,#"
Valid values: "<valid delimiter>" |
sendLogsToURL |
If set to a valid url, U-Upload
Cart will do an HTTP POST to the specified URL with a log of the FTP
session when the applet is exited (browser closed, or page unloaded),
or when the page is redirected. The POST will contain a parameter
called "logs", and the value will be the FTP session log.
Default value: ""
Valid values: "<valid URL>"
|
postURL |
If set to a valid url, U-Upload
Cart will do an HTTP POST to the specified URL with a list of all
uploaded files delimited by the delimiter as set.The url will also
contain information regarding base directory and total size of all
uploaded files onto the ftp server. The parameters will be called "f", "baseDir", and "totalSize" respectively.
Default value: ""
Valid values: "<valid URL>"
|
maintainpathinfo
|
If
this parameter is set to "true", all path info is maintained when files
are uploaded. Otherwise the path info is not included. This parameter
will also maintian the absolute path info regarding target file of
uploaded windows shortcut (.lnk) files.
Default value: "true"
Valid values: "<true or false>" |
removeaccentsandquotes |
If set to true, U-Upload will convert accented characters in a filename to non-accented characters.
Default value: "false"
Valid values: "true", "false" |
removespaces |
If set to true, U-Upload will replace all spaces in a filename to an underscore character.
Default value: "false"
Valid values: "true", "false" |
removePathsFromPostData |
If set to true, U-Upload will strip path information from the file data that is sent to the URL specified in the postURL parameter.
Default value: "false"
Valid values: "true", "false" |
autoDmg |
If set to true, on Mac OS X 10.1 or higher, U-Upload will create a DMG disk image that contains all selected files and upload the DMG to the FTP server. The DMG file maintains all resource forks.
Default value: "false"
Valid values: "true", "false" |
dmgFileName |
When using the "autoDmg" parameter, this allows you to specify the name of the DMG file that is created and uploaded to the FTP server.
Default value: "files.dmg"
Valid values: "<valid filename>" |
postArchiveContents |
If set to "true", this will post the contents of any Zip or DMG file created rather than posting the name of the Zip or DMG file that was created. This is used in conjunction with the "postURL" parameter.
Default value: "false"
Valid values: "true", "false" |
addAllFilesAndDirectories |
By default, clicking the "Add all" button will add all files and directories in in the current working directory into the upload queue. Setting this value to false will force U-Upload to only add files.
Default value: "true"
Valid values: "true", "false" |
showThumbnails |
If set to "true", U-Upload Cart will show thumbnails of image file son the left hand browse pane while the use is browsing.
Default value: "false"
Valid values: "true", "false" |
thumbsPerPage |
This parameter limits the number of thumbnails per page to improve browsing speeds.
Default value: "5"
Valid values: "<valid integer>" |
thumbSize |
This specifies the longest side (in pixels) of the thumbnails displayed in the left hand pane.
Default value: "100"
Valid values: "<valid integer>" |
checksize |
If set to "true", the file size will be verified after upload is complete. This relies on the SIZE command being implemeneted on the FTP server. If you see errors with this feature enabled, your FTP server likely doesn't support the SIZE command.
Default value: "false"
Valid values: "true", "false" |
|
4.4 Color and Interface settings
These parameters control the various colors of the
U-Upload Cart interface. They allow you to blend the color scheme of
U-Upload Cart with that of your existing web page.
Color
and Interface settings
|
language |
U-Upload Cart allows you to
customize
the language of the text on the interface. To do this, edit the
contents of "lang_en.txt" which is included in the download archive.
Save the file with an appropriate language code. Example for French
might be "lang_fr.txt". This parameter should then be set to "fr".
Default value: "en"
Valid values: "<language code>" - There must also be a file
defined
lang_<language code>.txt in the same directory as
uuploadcart.jar,uuploadcartMac.jar (For Mac only), and
uuploadcart.cab.
|
bgcolor |
Allows you to change the
background of the applet using standard RGB (Red, Green, Blue) values
separated by a comma. For example white = 255,255,255
Default value: "255,255,255"
Valid values: "<valid RGB values between 0 and 255>"
|
width |
Width of the U-Upload Cart
applet.
Default value: "500"
Valid values: "<integer value (in pixels)>"
|
height |
Height of the U-Upload Cart
applet.
Default value: "150"
Valid values: "<integer value (in pixels)>"
|
showlocaladdressbar
|
This
parameter toggles the visibility of localaddressbar on top of
directory list box to be on or off.
Default value: "true"
Valid values: "<true or false>"
|
showpreview
|
This
parameter toggles the visibility of selection preview box to be on or
off.
Default value: "true"
Valid values: "<true or false>"
|
uploadButtonLocation
|
This
parameter specifies the placement of Upload button on Upload Cart
applet. In this version of Upload Cart Upload Button can only be placed
on top or bottom of the applet. Invalid value if specified will be
overridden with the default value of this parameter.
Default value: "NORTH"
Valid values: "<NORTH or SOUTH>"
|
|
4.5 Error page URLs
These parameters allow you to define your own error
pages for different types of errors that can occur when a user attempts
to load U-Upload Cart.
Customizable Error Pages |
errNavWin
|
This error page will be called
when the user is running Windows, and their Netscape version is not
sufficient to run U-Upload Cart.
Default value: ""
Valid values: "<valid URL>"
|
errIEWin |
This error page will be called
when the user is running Windows, and their Internet Explorer version
is not sufficient to run U-Upload Cart.
Default value: ""
Valid values: "<valid URL>"
|
errIEWinVM |
This error page will be called
when the user is running Windows with Internet Explorer and the
Microsoft VM for Java is not sufficient to run U-Upload Cart.
Default value: ""
Valid values: "<valid URL>"
|
errNavUnix |
This error page will be called
when the user is running Unix, and their Netscape version is not
sufficient to run U-Upload Cart.
Default value: ""
Valid values: "<valid URL>"
|
errIEMac |
This error page will be called
when the user is running Mac OS, and their Internet Explorer version is
not sufficient to run U-Upload Cart.
Default value: ""
Valid values: "<valid URL>"
|
errNavMac |
This error page will be called
when the user is running Mac OS, and their Netscape version is not
sufficient to run U-Upload.
Default value: ""
Valid values: "<valid URL>"
|
errOperaWin |
This error page will be called
when the user is running Opera browser, and the version is not
sufficient to run U-Upload Cart.
Default value: ""
Valid values: "<valid URL>"
|
rejectPermissionURL |
This error page will be called
when the user rejects the security certificate or does not grant the
permissions required for U-Upload Cart to run.
Default value: ""
Valid values: "<valid URL>"
|
|
4.6 Language settings
U-Upload Cart's language settings allow you to
customize
the text on the applet. This can be accomplished by modifying the text
elements provided in the lang_en.txt file. Alternatively if you wish to
provide support for multiple languages you may create a separate
language file for each language you wish to support. Using this method
you can dynamically load the language file based on the "language"
parameter provided to U-Upload Cart.
For example, if you wish to create a language file
that contains the text elements for the German language then follow
these steps:
- Copy the default lang_en.txt file to a new file
named lang_de.txt
- Update the text element values in lang_de.txt
providing the German equivalents.
- Adjust the language parameter of U-Upload Cart with
the
value of "de".
- Upload lang_de.txt and the modified uuploadcart.js
files to the web server directory that contains U-Upload Cart.
Note: If no language parameter is provided then the
default lang_en.txt file is used.
5 Advanced Features
5.1 Advanced file selection interface
U-Upload Cart will let you automatically preview any
image files before uploading the same. If there is no preview available
U-Upload Cart will display the default preview for non image file.See Section 3.2 for selection preview box.
5.2
Loading U-Upload Cart dynamically
In some cases, it may be desirable to load the
U-Upload Cart applet dynamically using JavaScript or using a server
side
scripting language such as JSP, PHP or ColdFusion. If this is the case,
you may want to move the contents of uuploadcart.js into your dynamic
page by cutting and pasting the entire source in between two
<script> tags. You can then replace the variable values with
values obtained from your dynamic page. Here is an example:
<% String username = "anonymous" ; String password = "uftp@nlimitedftp.com" ; String hostname = "ftp.sun.com" ; String port = "21" ; %> <script>
// Connection related values
var server = " <%= hostname %> " ; var port = " <%= port %> " ; var pass = " <%= password %> " ; var user = " <%= username %> " ;
... </script>
5.3 Integrating U-Upload Cart with your
web
application
Further to loading U-Upload Cart dynamically,
you may want
to fully integrate U-Upload Cart into your web application's workflow.
To do
this we provide a way to automatically redirect after the upload is
complete. This allows
you to use U-Upload Cart
as a means to move the files to your FTP server. There are 4 URLs you
can use to redirect after uploads are complete. "callurlaftertransfer"
, "transfererrorurl" , "transfercancelurl", "othererrorurl". All of
these are described in Section 4.3.
U-Upload also provides the "postURL" and
"sendLogsToURL" parameters, also described in Section 4.3.
6 Support
6.1 Frequently Asked Questions and
Troubleshooting
A comprehensive list of frequently asked questions can
be found at http://www.unlimitedftp.ca/support/faq/
6.2 Support forums
Our support forums are available 24/7 and are a great
place to get answers. http://www.unlimitedftp.ca/support/
6.3 Phone, email and chat support
Email : info@utechsoft.com
(usual response time is1 business day)
Live chat : http://www.unlimitedftp.ca/support/ (available 9 - 5 Eastern Standard Time)
Phone: 1-877-EASY-FTP (available 9 - 5 Eastern
Time)
|
